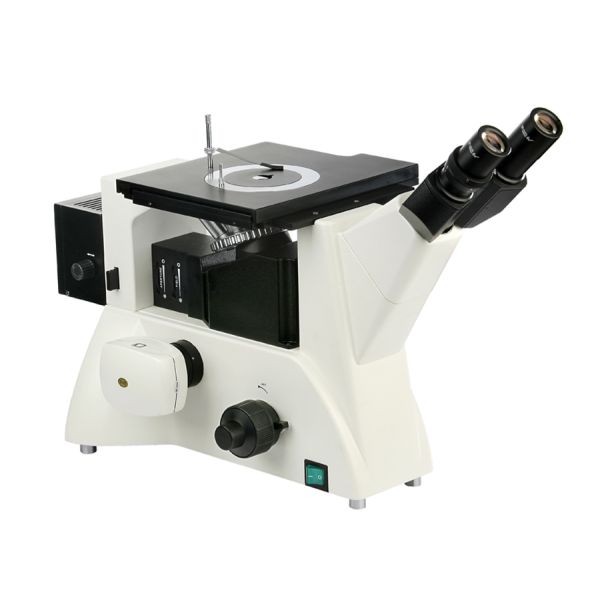

Bright Field Halogen Lamp Microscope Digital Metallurgical Microscope A13.0210

Name: Bright Field Halogen Lamp Microscope Digital Metallurgical Microscope A130210
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Brand Name : CNOEC, OPTO-EDU

Model Number : A13.0210

Certification : CE|Rohs

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

application : Research|Learning|Metallurgical

Drawtube : Binocular

Illumination : Halogen Lamp

magnification : 100X - 500X

Theory : Metallurgical Optical Microscope

Contact Now

APO Metallurgical Microscopes Bright Field Microscopes Rohs CE A13.0210

Specifications:

Specification	A13.0210 Metallurigical Microscope	A	B
Eyepiece	Wide field WF10X(field number:Φ22mm)
Infinity Plan Achromatic Objective	PL L10X/0.25 (Work distance):20.2 mm(Equipped with bright field objectives)	●
	PL L20X/0.40 (Work distance):8.80 mm(Equipped with bright field objectives)	●
	PL L50X/0.70 (Work distance):3.68 mm(Equipped with bright field objectives)	●
	PL L100X/0.85 (Dry)Work distance):0.4 mm(Equipped with bright field objectives)	●
	PL L5X/0.12 BD (Work distance):9.7 mm(Equipped with bright & dark field objectives)		●
	PL L10X/0.25 BD (Work distance):9.30 mm(Equipped with bright & dark field objectives)		●
	PL L20X/0.40 BD (Work distance):7.23mm(Equipped with bright & dark field objectives)		●
	PL L50X/0.70 BD (Work distance):2.50 mm(Equipped with bright & dark field objectives)		●
Eyepieces Tube	Inclination angle is 45°and interpupillary distance is 53~75mm.
Focus System	Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Mechanical stage,overall size:242mmX200mm,moving range: 30mmX30mm
Stage	Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination System	6V30W halogen and brightness enable control.	●
	12V50W halogen and brightness enable control.		●
	Integrated field diaphragm , aperture diaphragm and puller type polarizer.
	Equipped with frosted glass and yellow ,green and blue filters

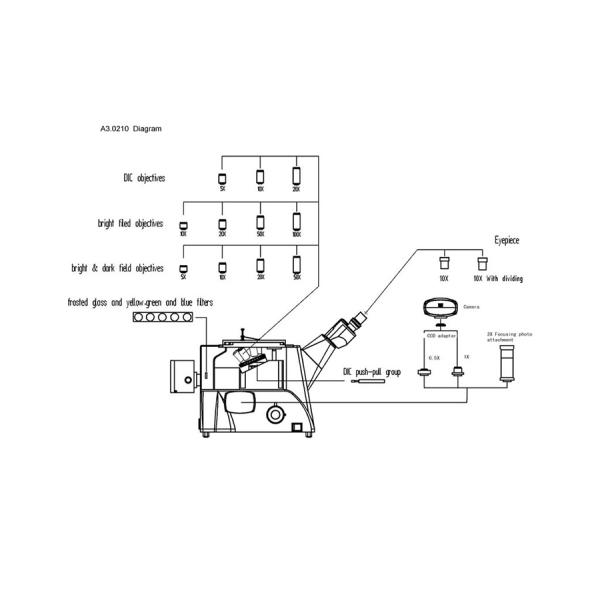

Optional Accessories			Item NO.
Eyepiece	Dividing eyepiece(field number:Φ22mm) 0.10mm/Div		A51.0205-G10B
Objective	PL L5X/0.10 (Work distance):26.12 mm	Equipped with bright field objectives	A5M.0235-5
	PL L40X/0.60 (Work distance):3.68 mm		A5M.0235-40
	PL L60X/0.70 (Work distance):3.18 mm		A5M.0235-60
	PL L80X/0.80 (Work distance):1.28 mm		A5M.0235-80
	PL L40X/0.60 BD (Work distance):3.00 mm	Equipped with bright & dark field bjectives	A5M.0237-40
	PL L60X/0.70 BD (Work distance):1.90 mm		A5M.0237-60
	PL L80X/0.80 BD (Work distance):0.80mm		A5M.0237-80
	PL L100X/0.85 BD (Work distance):0.22 mm		A5M.0237-100
CCD Adapter	0.5X		A55.0202-4
	1X		A55.0202-2
	0.5X with dividing 0.1mm/Div		A55.0202-3
Digital Camera Adapter	CANON EF digital SLR camera adapter		A55.0204-01

Bright Field Halogen Lamp Microscope Digital Metallurgical Microscope A13.0210

Product Tags:

reflected light microscope

halogen lamp microscope

Bright Field Halogen Lamp Microscope Digital Metallurgical Microscope A13.0210 Images
