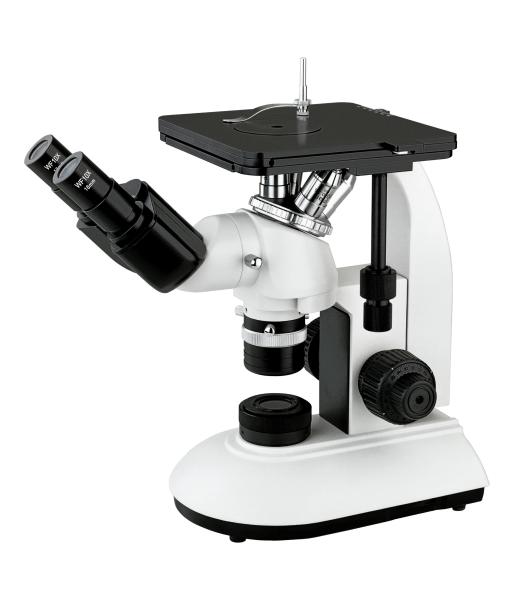

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Name: Inverted Metallurgical Optical Microscope WF10x18mm Eyepiece Quadruple Nosepiece
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Wholesale Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from china suppliers

Brand Name : CNOEC, OPTO-EDU

Model Number : A13.2602

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Head : Head Inclined 45°, Rotatable 360°

Eyepiece : WF10x/18mm

Objectives : Metallurgical LWD Infinity Plan Objectives

Nosepiece : Quadruple

Stage : Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm

Illuminator : 3W LED Lamp, Wide Voltage: 100V-240V or 12V 20W Halogen Lamp, Wide Voltage: 100V-240V

Contact Now

optical inverted china price of laboratory all kinds of used metallurgical microscope

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

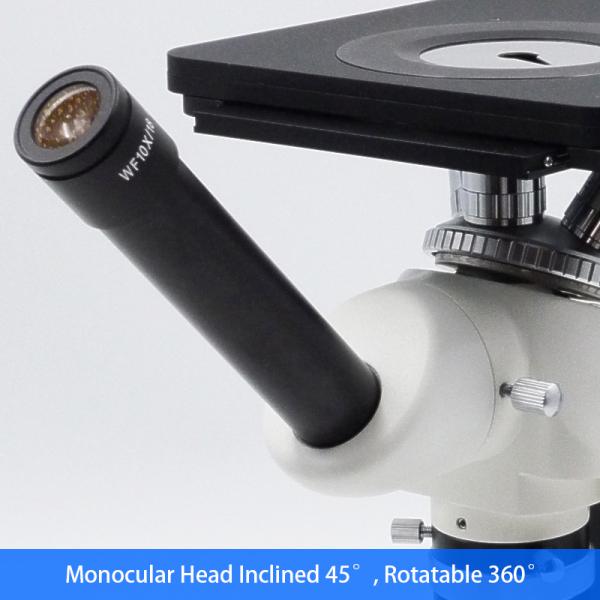

A13.2602-A Monocular Head
Monocular Head Inclined 45°, Rotatable 360°

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

A13.2602-B Seidentopf Binocular Head
Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Nosepiece & Objective
Quadruple Nosepiece; Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Light Source
3W LED Standard Lamp; 12V 20W Halogen Lamp Optional

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Working Stage
Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Items	A13.2602 Inverted Metallurgical Microscope Specification	-A	-B	Cata. No.
Head	Monocular Head Inclined 45°, Rotatable 360°	●		A53.2631-M
Head	Seidentopf Binocular Head Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm		●	A53.2631-B
Eyepiece	WF10x/18mm	●	●●	A51.2602-1018
Eyepiece	WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable	○	○	A51.2605-1018D
Nosepiece	Quadruple	●	●	A54.2610-N704R
Metallurgical LWD Infinity Plan Objectives	LPL 5x/0.13, W.D.=16.04mm	●	●	A5M.2633-5
	LPL10x/0.25, W.D.=18.48mm	●	●	A5M.263310
	LPL 20x/0.40, W.D.=8.35mm	○	○	A5M.2633-20
	LPL 50x/0.70, W.D.=1.95mm	●	●	A5M.2633-50
	LPL 80x/0.80, W.D.=0.85mm	○	○	A5M.2633-80
	LPL 100x/0.90(Dry), W.D.=1.00mm	○	○	A5M.2633-100
Working Stage	Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm	●	●	A54.2601-MP100
Working Stage	Round Plate With Oval Hole	○	○	A54.2601-MD400
Light Source	3W LED Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	A56.2612-3W
Light Source	12V 20W Halogen Lamp, Wide Voltage: 100V-240V	○	○	A56.2650-20W
Filter	Blue, Dia.32mm	●	●	A56.2616-32B
	Green, Dia.32mm	●	●	A56.2616-32G
	Grey, Dia.32mm	●	●	A56.2616-32N
Micrometer	Division 0.01mm	○	○	A58.2001-901
Package	Carton Size 437268522mm, 1 Unit/Ctn
Weight	Gross Weight 8.0kgs, Net Weight 7.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
