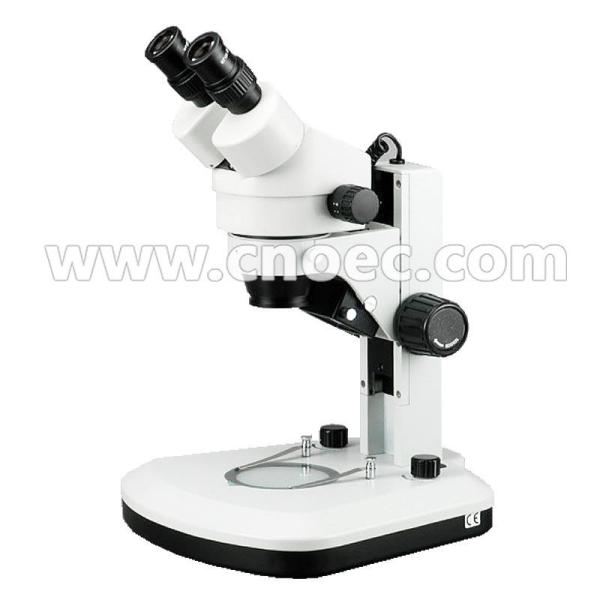

White Learning Stereo Binocular Microscope High Eyepoint A23.0901-BL1

Name: White Learning Stereo Binocular Microscope High Eyepoint A230901BL1
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Wholesale White Learning Stereo Binocular Microscope High Eyepoint A23.0901-BL1 from china suppliers

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE|Rohs

Model Number : A23.0901-BL1

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Applications : Jewelry|Medical|Clinic|Learning

Drawtube : Binocular

Illumination : LED

product name : stereo zoom microscope

Theory : Stereo Microscope

magnification : 7x - 45x

Contact Now

White Learning Stereo Binocular Microscope High Eyepoint A23.0901-BL1

Description:

--0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece,
--Total Optical Magnification 7~45x
--Uo & Bottom High Brightness LED Light Source, Separatly Controlled
--Track Stand, Height 260mm, Focusing Range 110mm
--110~240V Wide Range Voltage

Specifications:

A23.0901-BL1 Zoom Stereo Microscope Specification

Head

Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable,

Interpupillary Adjustment 54-75mm

Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable,

Interpupillary Adjustment 54-75mm

Eyepiece

WF10x/20mm, High Eyepoint

Zoom Lens

0.7~4.5x

Zoom Ratio

1:6.5

Magnification

7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives

Working Distance

100mm, With Auxiliary Objectives 30~165mm

Field of View

1~95.2mm

Light Source

Uo & Bottom High Brightness LED Light Source, Separatly Controlled

Stand

Big Fan Track Stand, Height 260mm, Focusing Range 110mm, Base 300*303*45mm

Power

110~240V Wide Range Voltage

A23.0901-BL1 Zoom Stereo Microscope Optical Data Sheet
Objective	Standard 1.0x		Auxiliary 0.5X		Auxiliary 1.5X		Auxiliary 2X
W,D.	100mm		165mm		45mm		30mm
Eyepiece	Mag	View field	Mag	View field	Mag	View field	Mag	View field
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180X	1.1mm

A23.0901-BL1 Zoom Stereo Microscope Optional Accessories

Cata. No.

Head

Binocular Head + WF10x/20mm

A23.0901-BH

Trinocular Head + WF10x/20mm

A23.0901-TH

Eyepiece

WF10x/20mm, High-eyepoint, Outside Dia. 30mm

A51.0922-10

WF15x/15mm, High-eyepoint, Outside Dia. 30mm

A51.0922-15

WF20x/10mm, High-eyepoint, Outside Dia. 30mm

A51.0922-20

WF10x/20mm,with Reticle

A51.0932-10

WF15x/15mm,with Reticle

A51.0932-15

WF20x/10mm,with Reticle

A51.0932-20

Auxiliary Lens

0.5X,W.D. 165mm

A52.0927-05

0.75X,W.D. 105mm

A52.0927-75

1.5X,W.D. 45mm

A52.0927-15

2.0X,W.D. 30mm

A52.0927-20

CCD Adapter

0.50x, For 1/2" CCD

A55.0932-05

0.35x, For 1/3" CCD

A55.0932-35
